Andersen FWH76 Hinged Door - (Active Door Panel) 3-Point Lock Mechanism (1988 to Present)

• Works with 400 Series Frenchwood Hinged (In-Swing and Out-Swing) Patio Doors manufactured from 1988 to Present.
• Fits 7' 6" high Frenchwood Hinged Patio Doors with a visible glass height of 73-1/2".

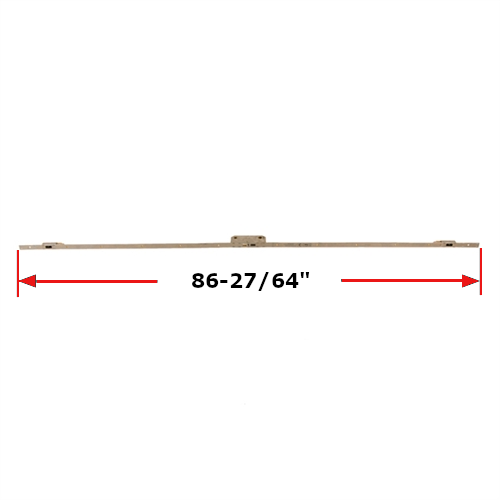

• The lock end to lock end measures 86-27/64" long

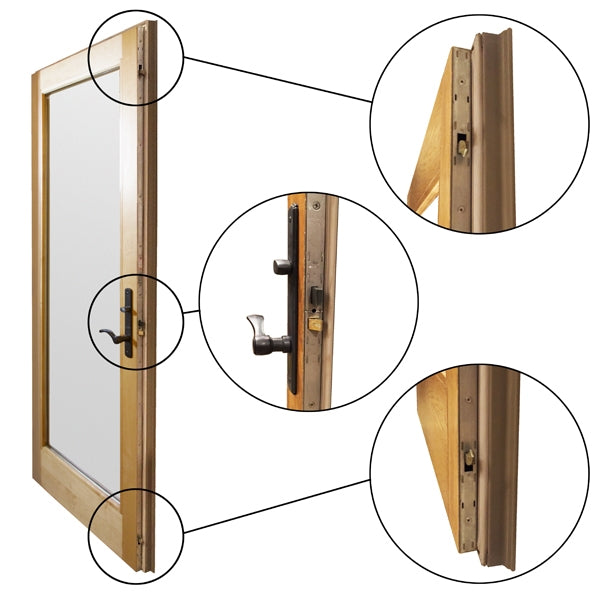

• This lock mechanism fits in the vertical edge of the main active door panel. Note: The passive door panel requires a different lock mechanism.
• This lock end to end measures 86-27/64" long.
• This stainless steel active lock mechanism replaces the gold colored zinc dichromate lock mechanism.
• Lock mechanism is universal and used for both left and right hinged patio doors.

Note: For size guide and replacement instructions view the (Size Guide & Instructions) section.
