Truth Hardware "Ellipse" Single Arm 9-1/2" Operator (Left Hand)
- Used on casement windows by many manufacturers.
- Has a stainless steel roller on the end of the operator arm.
- Mounted to the window sill.
- Available in Bronze and White.
- High-pressure die-cast zinc case with a hardened steel arm.
- Protected with Truth Hardware's corrosion-resistant E-Gard coating process.
- Left hand operator.
- Crank handle sold separately.

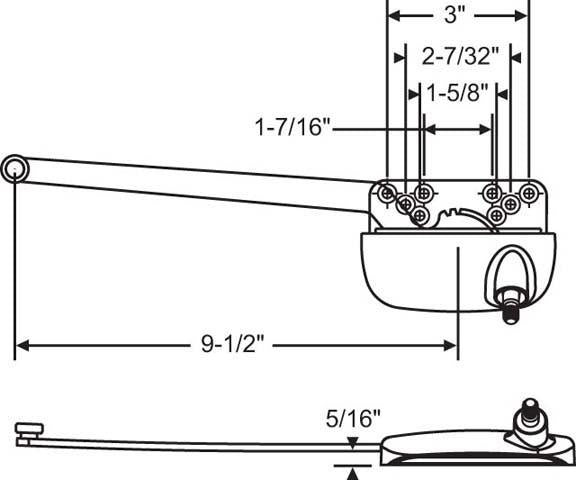

Operator Dimensions
- Base mounting hole spacing: 3".
- Operator arm length: 9-1/2".
- Arm length from bend to rivet: approximately 7-1/2".
