Truth Hardware "Ellipse" Split Arm Casement Operator (Left Hand) - White
Status: Ships in 1-2 Business Days
Product Details
Truth Hardware "Ellipse" Split Arm Casement Operator (Left Hand) - White
Truth 15.30 Ellipse split-arm operator for sill-mounted casement windows. Built as a replacement-focused hardware listing, this operator should be matched by configuration and dimensions rather than by appearance alone.
Operator Specifications:
- Manufacturer: Truth Hardware
- Family / Series: Ellipse
- Product Type: Split Arm Casement Operator
- Handing: Left Hand
- Color / Finish: White

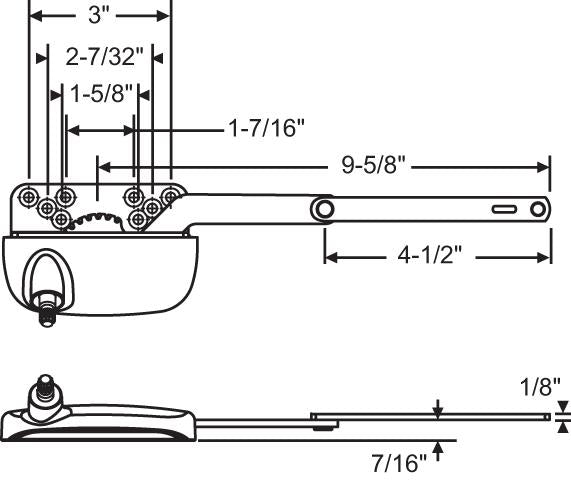

- Straight-link replacement configuration: 4-1/2" from rivet center to stud-hole center; approximately 5" overall link length.
- Handle is not included.
- This legacy/discontinued configuration is replaced by Truth 50.60.00.211; replacement also requires the applicable current cover/handle and stud/snap-on bracket.
Cross-Reference / Identification Numbers:
- Common markings: main body 45035, left-hand main arm 40352, link 30905, mounting bracket 40448.
- Truth 15.30.24.261 / 15.30.22.261 / 15.30.29.261 / 15.30.32.261; 30905; SWISCO 39-172 probable
Replacement Identification: Before replacing a legacy 15.30 operator, compare the old offset/straight-link arrangement and all mounting dimensions; replacement hardware may require additional components.
