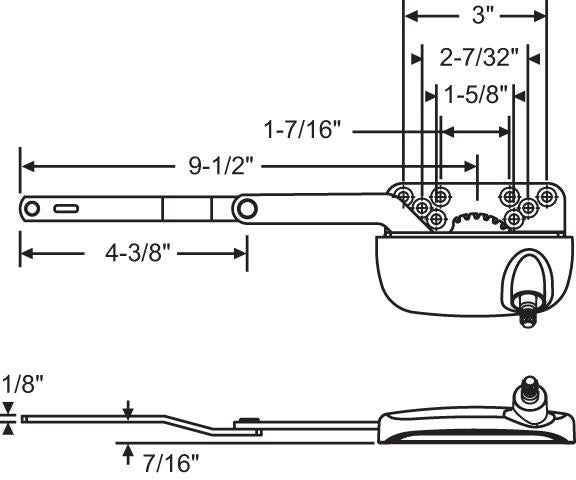

Click image above for expanded view
Truth Hardware "Ellipse" Split Arm Dyad Casement Operator (Right Hand)
Status: Ships in 1-2 Business Days
Product Details
Truth Hardware "Ellipse" Split Arm Dyad Casement Operator (Right Hand)
Truth 15.18 Ellipse dyad-style split-arm operator, sill mounted. Built as a replacement-focused hardware listing, this operator should be matched by configuration and dimensions rather than by appearance alone.
Operator Specifications:
- Manufacturer: Truth Hardware
- Family / Series: Ellipse
- Product Type: Split Arm Dyad Casement Operator
- Handing: Right Hand
- Color / Finish: White, Gold, or Bronze
- 5" link-arm family; this configuration is part of the 15.18 Ellipse dyad group.
- Designed for casement applications; high-pressure die-cast zinc body and hardened steel operator components are used in this family.
- White finish; handle is sold separately.
Cross-Reference / Identification Numbers:
- Common identification includes the Truth 15.18 family and 30905 arm/link stamp references.
- Link arm stamp 30905
Replacement Identification: Truth 15.18 Ellipse operators were produced with multiple link shapes and offsets. Match the link length, offset, mounting side, and handing to the original.
