- Short Arm Link is 3-3/4"
- This "Entrygard" casement operator is designed for use on narrow windows.
- Has a nylon roller on end of operator arm.
- High pressure die-cast zinc base and hardened steel worm gear.
- Left hand operator shown in the photo.
- Crank handle and cover sold separately.

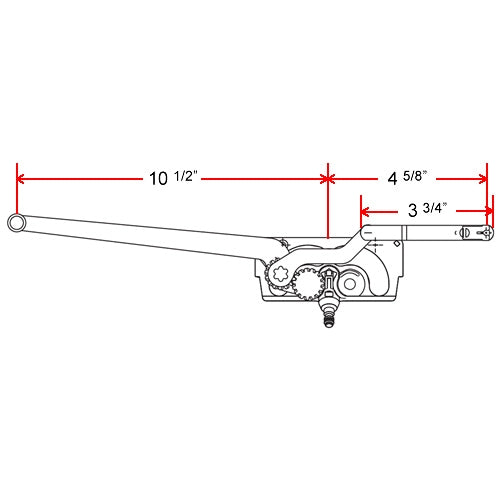

- Hole spacing at the base is 4-7/16"
- Arm length from left edge to center of base is 10-1/2"
Note: For the (right hand) version of this product click here: S-36-185
